ED/EF Camber Arm Kit
$977.90 AUD
Adjustable front upper control arm set for the 88-92 Honda Civic & CR-X vehicles.
Note: This is a motorsport-focused product; they have a more limited range of adjustment compared to other camber arms and require more time to install and set up (instructions are provided, though)
Includes:
LHS Control arm assembly
RHS Control arm assembly
1 in stock
Key Features

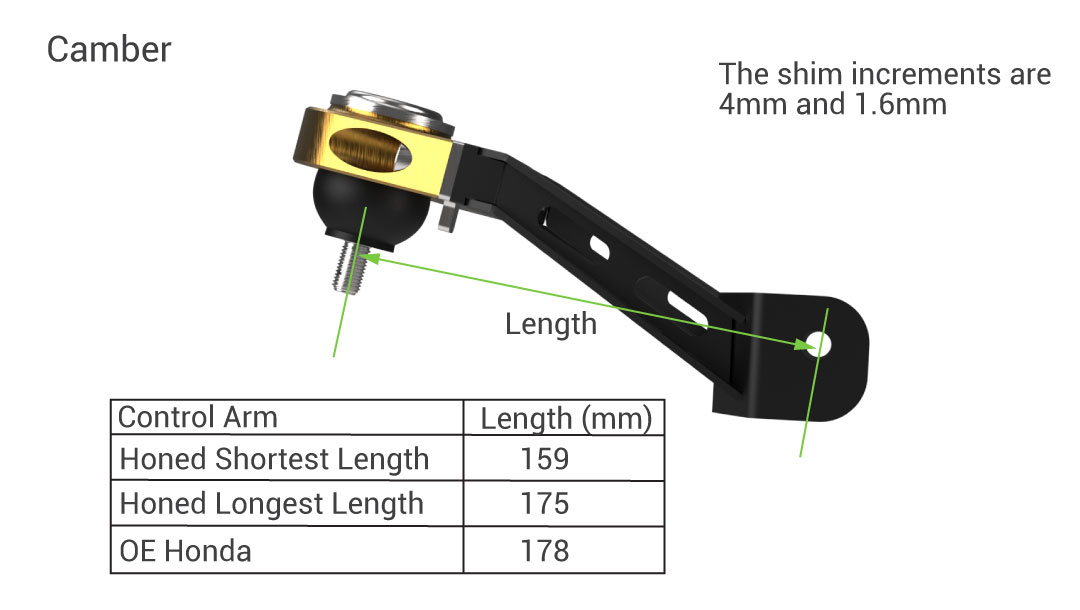

- -2.2 to -4+ Camber Range on Honda Civic or CR-X between 310-290mm ride height

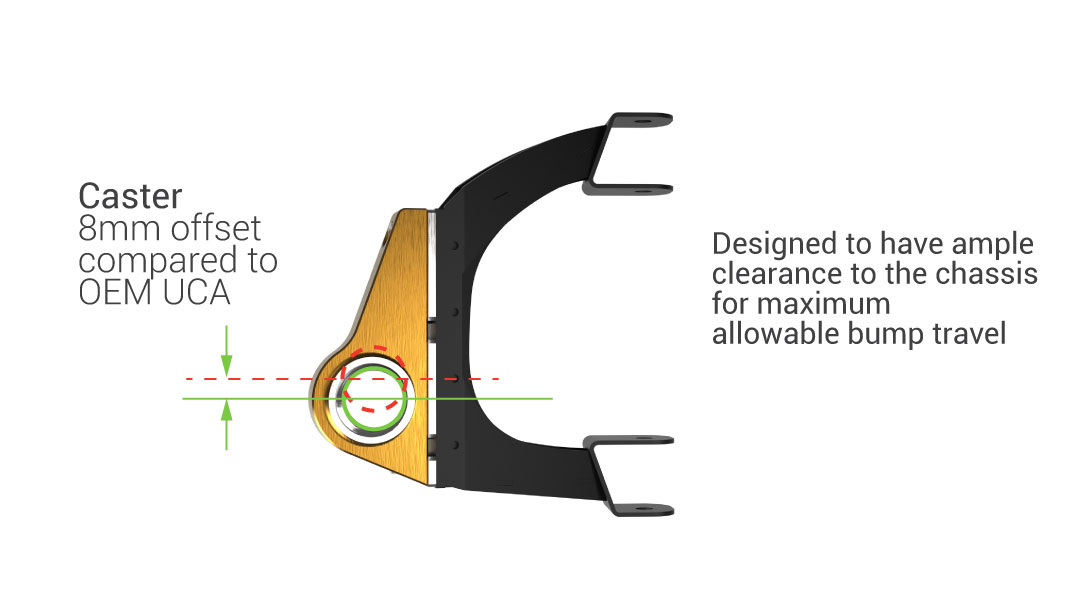

- 8mm caster offset compared to an OE upper control arm
- OE style Ball Joint (replacable)
- Ball joint angle refined to avoid binding even with low vehicles

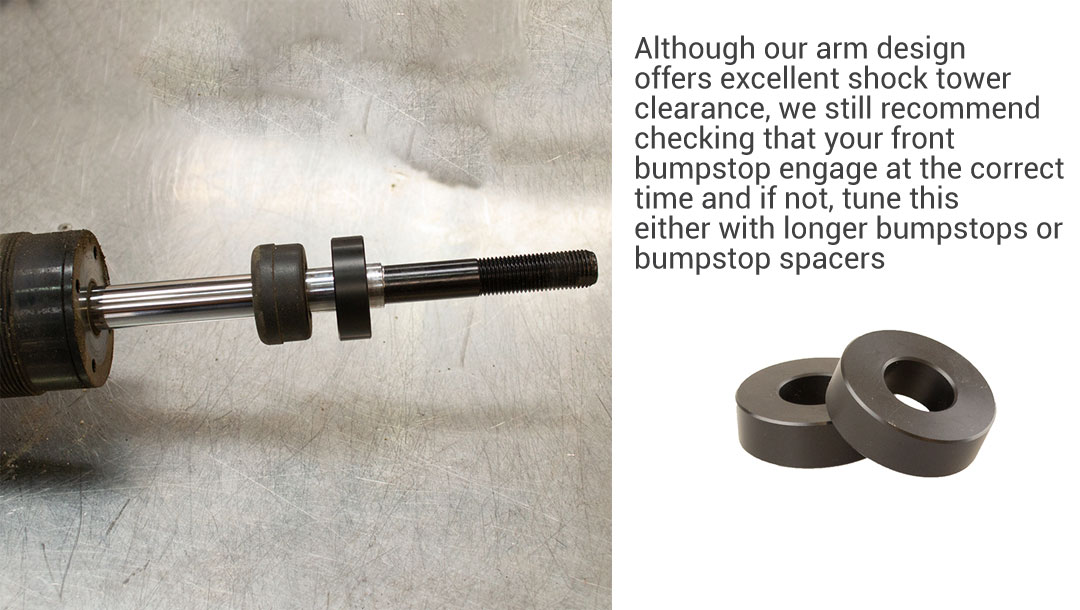

- Excellent shock tower clearance
- Tig welded Steel arm construction with high corrosion resistant ecoat finish
The two main drivers of this control arm design are:
- That the shape of the arm didn’t prematurely limit bump travel
- That the ball joint position cannot slip or lose its position
That’s how we ended up with a compact arm and shim-style adjustment. There is a compromise in terms of the ease of adjustment; these arms require the camber to be checked and then shims added or removed, and then the camber to be re-checked, and this process may take a few iterations until you reach your target camber values. However, this is not something that you need to do regularly.
